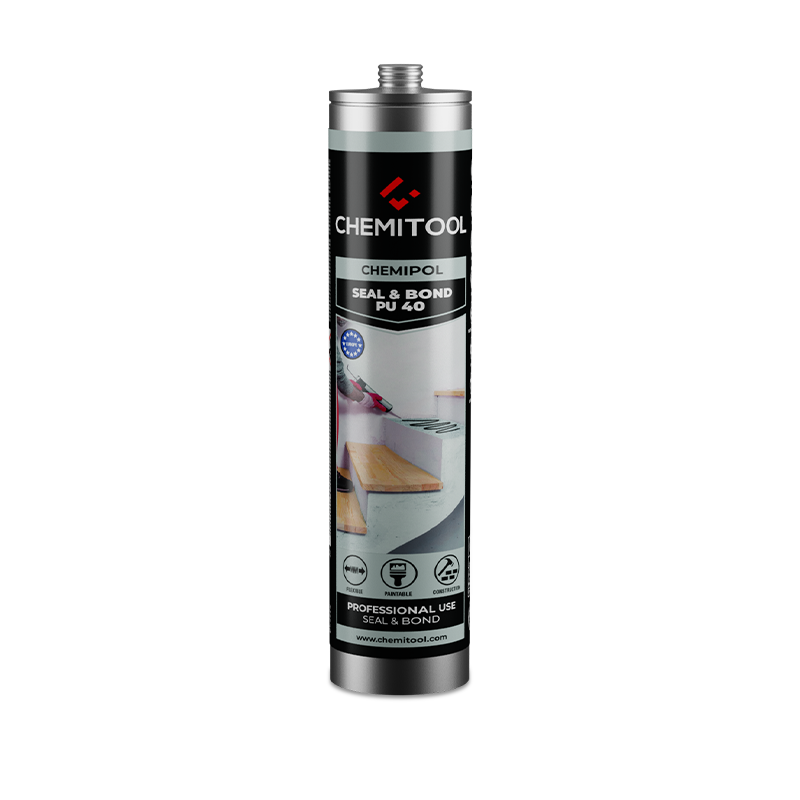

CHEMIPOL SEAL&BOND PU 40

Quick Info SAP: CH040 Categories: Tag:

CHEMIPOL SEAL&BOND PU 40 is a single-component polyurethane based Sealant and Adhesive, with high elasticity, excellent mechanical performance and great resistance to weathering. It forms a flexible and resistant joint in most construction materials. It has SNJF certification for application on anodized aluminium and façade application.

Description

PROPERTIES

  • High elasticity
  • Can be applied inside and outside
  • High movement capacity (25%)
  • Good resistance to UV rays and bad weather conditions
  • High chemical resistance to salt water, grease, detergents, etc
  • Excellent adhesion on construction materials, without primer
  • Paintable after curing
  • Ideal for expansion joints
  • SNJF CERTIFICATION with the classification Mastic élastomère, class 25E for anodized aluminium without primer, with registration no. 4389

INDICATIONS

Should be used in ventilated areas, avoiding contact with skin, eyes and mucous membranes. Keep out of the reach of children. Store in a cool, dry, well-ventilated environment between +5°C and + 25°C, away from sources of heat and moisture. Shelf life 18 months if stored under recommended conditions. In cold weather, store cartridges at approx. 20°C before use.

Additional information

Base

Polyurethane

Density at 20°C

1,15 ± 0,03

Film formation time (23º and 50% r.h.)

≈ 50 min

Curing time at (23º and 50% r.h.)

> 3 mm/24h

Application temperature

+5ºC to +35ºC

Hardness (Shore A)

≈ 40/14 days (ISO 868)

Tear strength

8,5 N/mm (ISO 34)

Modulus at break

≈ 1,4 Mpa (ISO 37)

Modulus at 100%

≈ 0,3 Mpa (ISO 37)

Elongation at break

> 600 % (ISO 37)

Temperature resistance

-40⁰C a +80⁰C

Shelf life

18 months

Application

APPLICATIONS

Specially formulated for bonding and sealing of various construction materials and for expansion joints, in window frames, automotive industry, assembly and piping.This Glue and Sealer adheres without primer on substrates commonly used in construction, such as wood, anodized aluminium, polyester, glass, concrete, stone, ceramic, iron, brick.
For difficult materials, including PVC plastics, ABS, PMMA or materials such as lacquered aluminium and metal, we recommend preliminary testing to determine if the surface needs preparation.

PREPARATION

  • Surfaces must be thoroughly clean and dry, degreased and free of any friable particles which might impair adhesion. Acetone, alcohol or a degreaser can be used to clean the substrate. Check compatibility of SEAL&BOND PU 40 with the substrates. If necessary, apply a primer according to instructions.
  • For better adhesion rub the metal surfaces before use. Subsequently, re-clean the surface and allow to dry. We recommend cleaning the concrete with a metal brush.

APPLICATION

  • If necessary, use joint bead to avoid tri-point contact and observe the width/depth ratio defined by the following rule: ideal joint depth = joint width / 2, with a minimum depth of 8mm.
  • The application temperature must be between +5°C and +35°C.
  • Apply crepe tape on the sides of the joints to protect the places where it should not have contact.
  • Cut the tip and place in the cartridge. It is recommended that this cut be made at 45°C, at the diameter required for sealing the joint.
  • SEAL&BOND PU 40 can be applied using a manual or pneumatic gun.
  • Apply the product in uniform, continuous beads for sealing, and/or in dots if gluing, at regular intervals of a few centimetres.
  • After application, use a spatula to smooth the joint with soap and water and remove the crepe tape before filming. If gluing, apply pressure between the materials to be glued.
  • The curing process begins when it comes into contact with air humidity, this being done from the outside inwards by 3mm every 24 hours

CLEANING

  • Tools can be cleaned, acetone before the sealant cures.
  • After curing, it can only be removed by mechanical action.

PAINTING

  • It can be painted with most water based paints after the product is fully cured.
  • If the paint is solvent based, tests must be done beforehand.

Products

SAPmlTypeQnt/box
CH04010001White300Cartridge12
CH04010002Grey300Cartridge12
CH04010003Black300Cartridge12
CH04010004Brown300Cartridge12
CH04020021White600Sausage20
CH04020022Grey600Sausage20
CH04020023Black600Sausage20
CH04020024Brown600Sausage20



Downloads

Data Sheet Cartridge Data Sheet Sausage Certificate

DOP Safety data sheet
